VISUAL RFID Aluminium Electronic Hotel Lock

Be-Tech VISUAL RFID Door Lock series is a modern electronic lock designed with a simple, fashionable, and user-friendly appearance. It is especially suitable for modern and boutique hotels that require locks to blend seamlessly into stylish environments.

With the VISUAL Aluminium RFID series and all-black finish, architects and designers can enhance the aesthetic appeal of hotels while improving user experience. “The sparkling bright spot, not just the looks.”

Features

• Stand-alone electronic lock with RFID technology
• Blue LED indicator on the outside escutcheon for user interaction
• Fully sealed contactless RFID module
• High-security stainless steel mortise lockcase (ANSI, AUS, EURO versions)
• Mortise approved by CE and ANSI/BHMA standards
• 3-point stainless steel latch with anti-friction mechanism
• 20 mm throw high-strength deadbolt
• Panic release function for emergency exit
• ADA compliant (for guests with physical disabilities)
• Future-proof reprogrammable FLASH RAM memory
• Powered by 4 AA batteries (up to 1 year lifespan)
• Stores up to 414 event audit trails
• Compatible with BIS Hotel software platform
• High-security mechanical override cylinder available

RFID Specifications

• Frequency: 13.56 MHz
• Standard: ISO 14443 A (MIFARE Classic)
• 11 free sectors for future all-in-one card applications

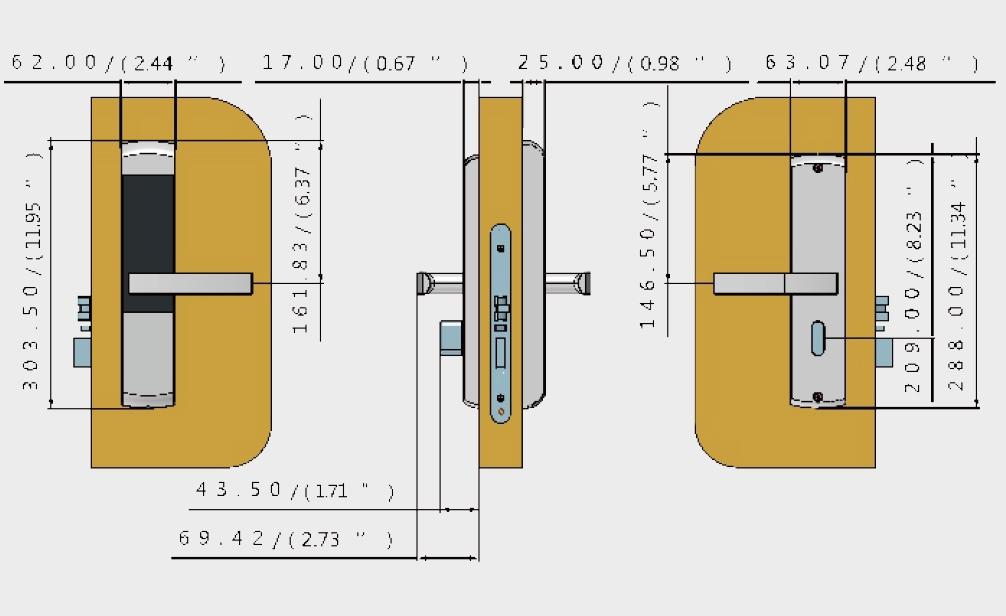

Dimensions

Technical Data

Lockcase Dimensions

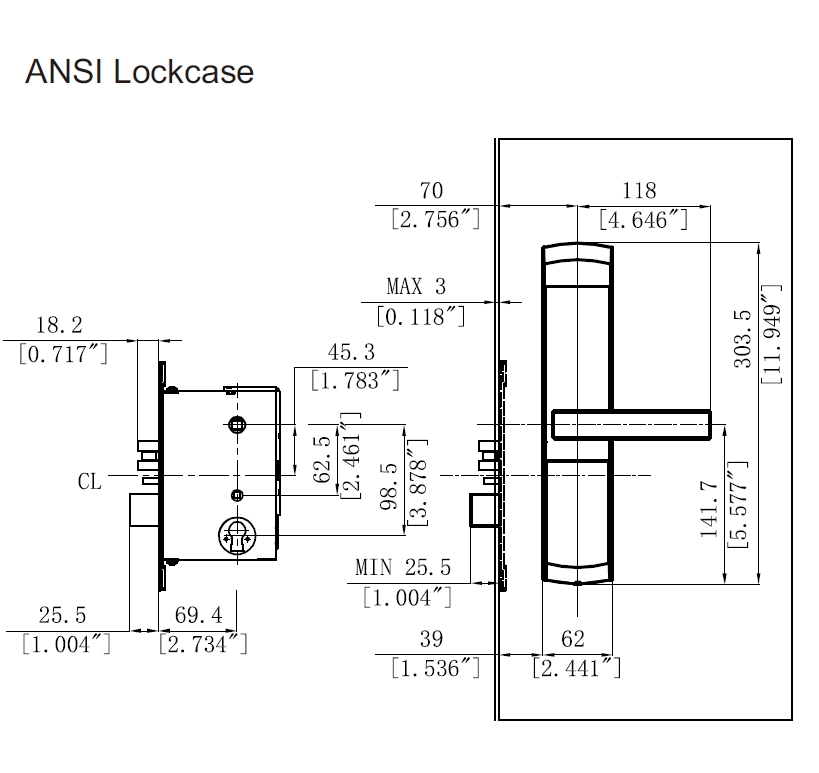

ANSI Lock Case

• Variant: ANSI DB
• Width: 28 mm (1.10″) / 31.5 mm (1.24″)
• Backset: 70 mm (2.76″)

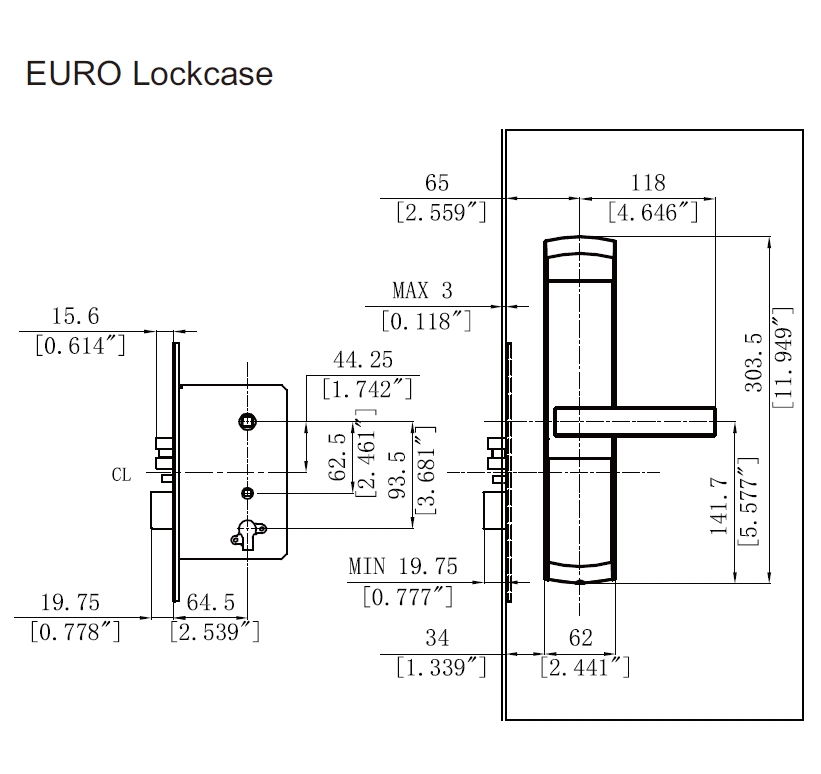

EURO Lock Case

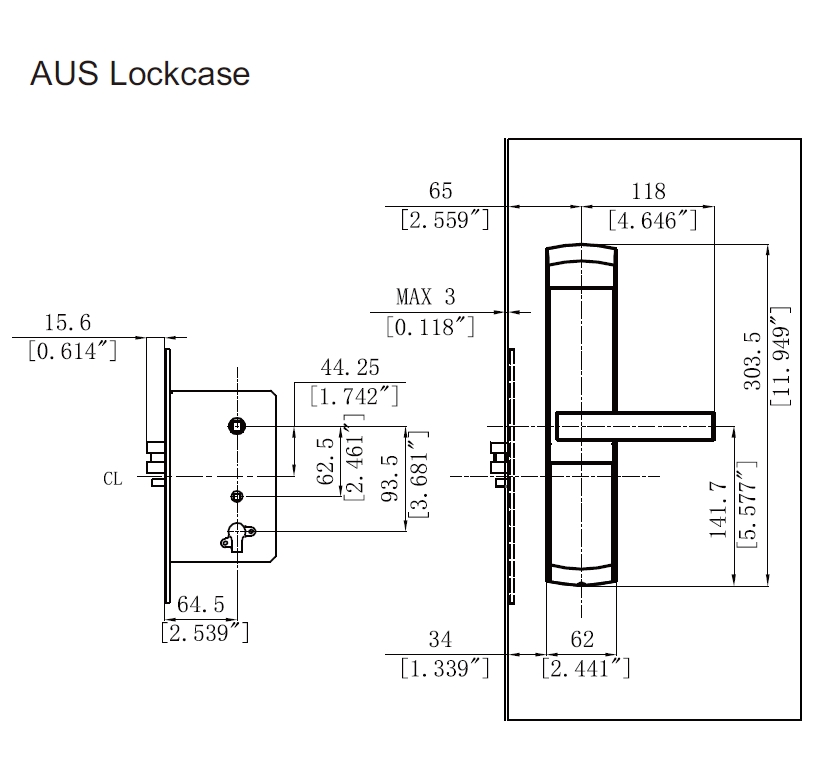

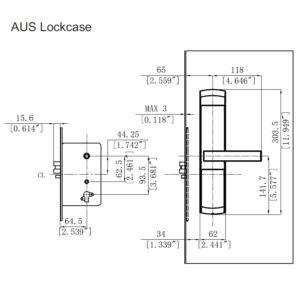

• Variants: EURO DB (AUS version available)
• Width: 22 mm (0.87″)
• Backset: 65 mm (2.56″)
