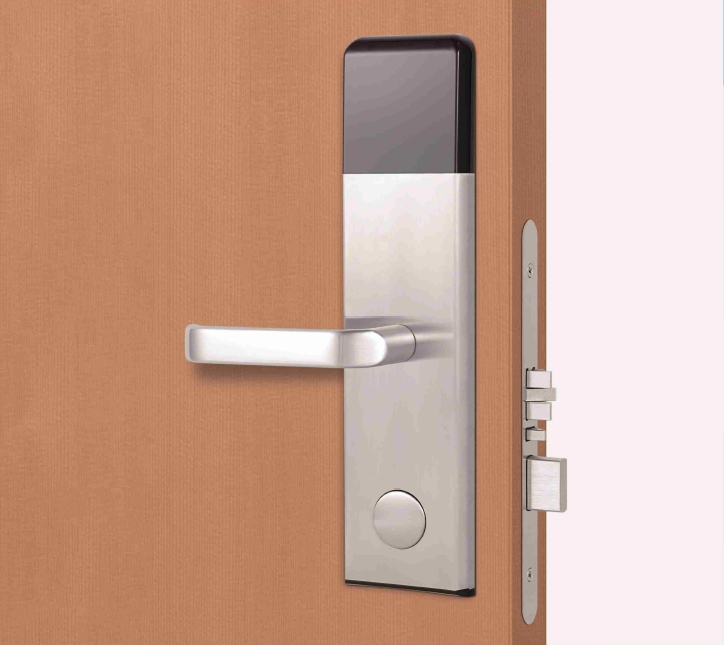

Be-Tech BASE RFID offers the latest and reliable Radio Frequency Identification (RFID) technology with a high cost-performance solution for contactless electronic locks. It provides a flexible solution for future all-in-one card applications.
Features
- Stand-alone electronic lock with RFID technology
- High security stainless steel mortise lockcase (ANSI, AUS, EURO versions)
- Stainless steel handle with brushed surface
- 3-point stainless steel latch with anti-friction mechanism
- 20mm throw high-strength deadbolt
- Panic release function for emergency exit
- ADA compliant (for guests with physical disabilities)
- Re-programmable FLASH RAM memory
- Powered by 4 AA alkaline batteries (up to 9 months usage)
- Stores up to 1000 event audit trails
- Compatible with BIS HOTEL software platform
- High-security mechanical override cylinder available
RFID Specifications
- Frequency: 13.56 MHz
- Standard: ISO 14443 A (MIFARE Classic)
- 11 free sectors for future all-in-one card applications

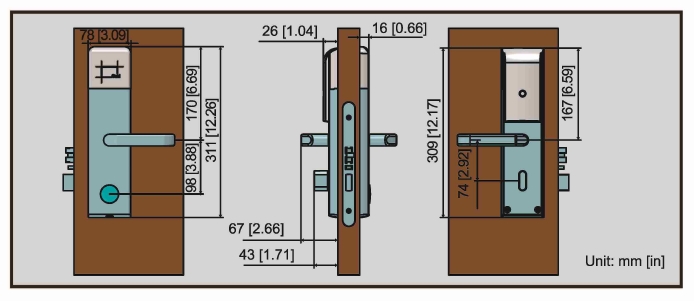

Dimensions
Technical Data
| Power | 4 x 1.5V AA alkaline batteries |
| Battery Location | Inside of the back lock |
| Material | Handle: Stainless steel, Lock body: SUS304 |
| Metal Finishes | Silver |
| Emergency Opening | Mechanical cylinder override |
| Locking Mechanism | Electro-mechanical |
| Door Thickness | 35–80 mm (EURO mortise) |
| Software Compatibility | BIS Hotel |
| Storage Temperature | -40°C to 80°C (non-condensing) |
| Operating Temperature | -20°C to 66°C |
| RFID Standard | ISO 14443 A (MIFARE Classic) |
Lockcase Dimensions

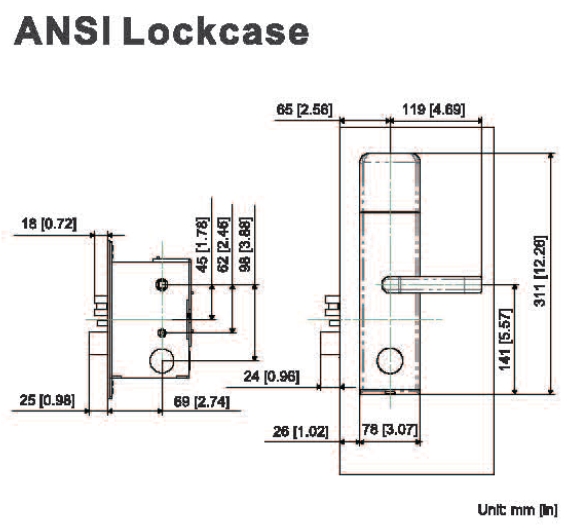

ANSI Lock Case
- Variant: ANSI DB
- Width: 28 mm (1.10″) / 31.5 mm (1.24″)
- Backset: 70 mm (2.76″)

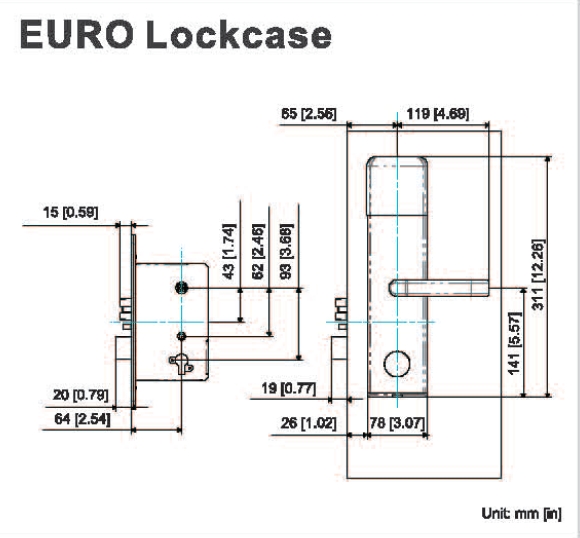

EURO Lock Case

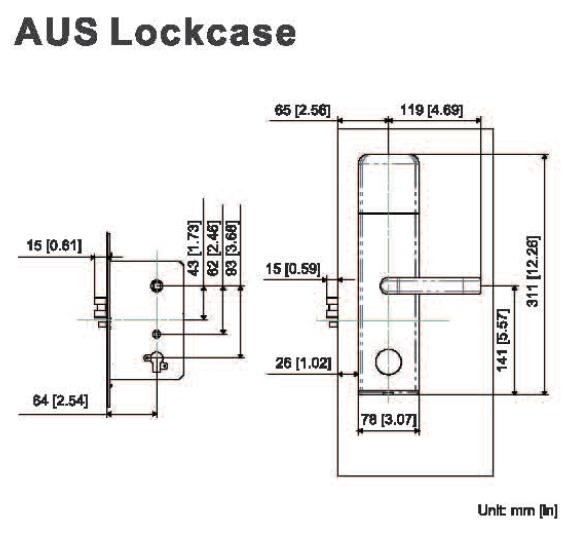

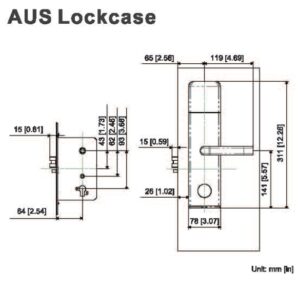

- Variants: EURO DB (AUS version available)
- Width: 22 mm (0.87″)
- Backset: 65 mm (2.56″)
