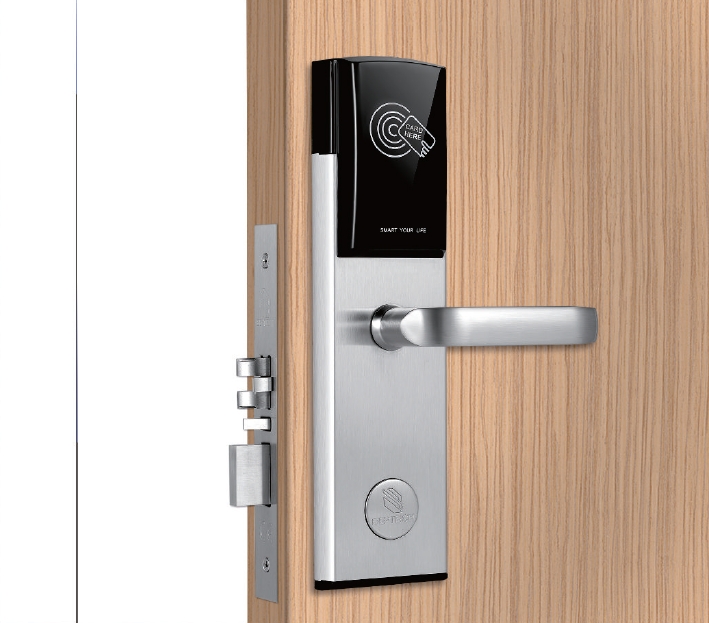

BASE RFID (9004 Series) Electronic Hotel Lock

Be-Tech BASE RFID offers the latest and reliable Radio Frequency Identification (RFID) technology with a high cost-performance solution for contactless electronic locks. It provides a flexible solution for future all-in-one card applications.

Features

• Stand-alone electronic lock with RFID technology
• High-security stainless steel mortise lockcase available in ANSI, AUS, and EURO versions
• Zinc alloy handle with long-lasting painted finish
• 3-point stainless steel latch construction with anti-friction mechanism
• Mortise equipped with 20 mm throw high-strength deadbolt
• Panic release function – deadbolt and latch automatically retract via inside handle for emergency exit
• ADA compliant (for guests with physical disabilities)
• Future-proof reprogrammable FLASH RAM lock memory
• Powered by four AA alkaline batteries (up to 1 year lifespan)
• Stores up to 1000 event audit trails
• Compatible with BIS Hotel software platform
• High-security mechanical override cylinder available

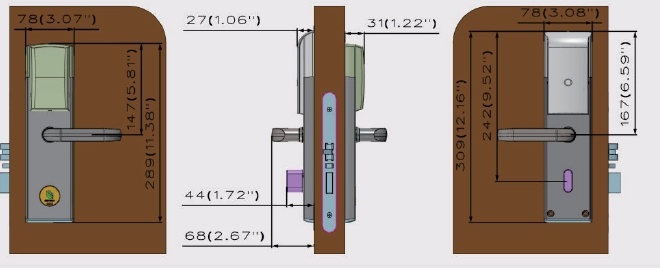

Dimensions:

Technical Data

Lockcase Dimensions

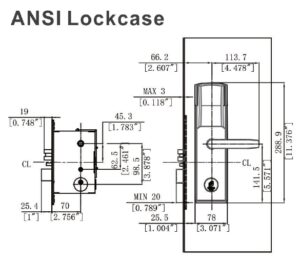

ANSI Lock Case

• Variant: ANSI DB
• Width: 28 mm (1.10″) / 31.5 mm (1.24″)
• Backset: 70 mm (2.76″)

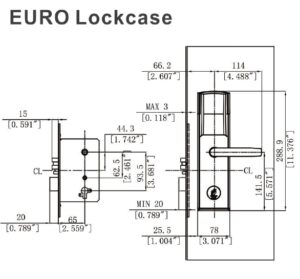

EURO Lock Case

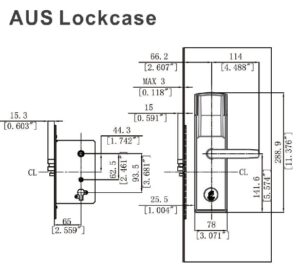

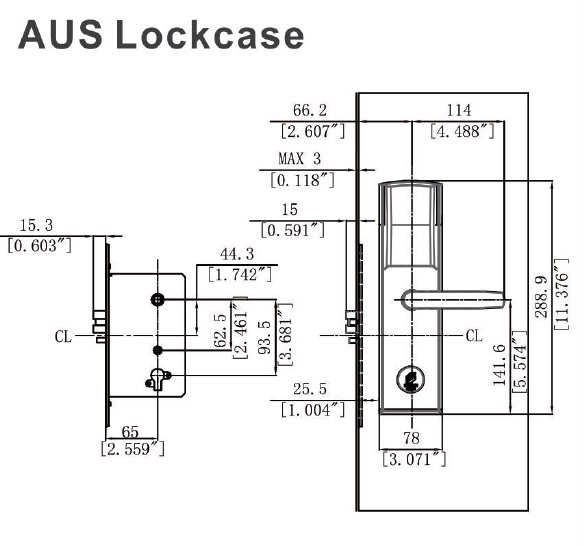

• Variants: EURO DB (AUS version available)
• Width: 22 mm (0.87″)
• Backset: 65 mm (2.56″)
