GUARDIAN RFID (GO Series) Electronic Hotel Lock

Be-Tech GUARDIAN RFID GO Series is specially designed for outdoor hotel use. Humidity, temperature, and salinity can significantly affect locks installed in environments such as beachfront or exterior areas. With a 304 stainless steel finish and a sealed RFID module located inside the escutcheon, this lock provides a reliable solution against harsh environmental conditions.

Be-Tech GUARDIAN RFID offers the latest and reliable Radio Frequency Identification (RFID) technology with a cost-effective contactless solution for hotels. It also provides a flexible platform for future all-in-one card applications.

Dimensions

Features

• Stand-alone electronic lock with RFID technology
• Fire-rated for use on fire doors (EN standard)
• High-security stainless steel mortise lockcase (ANSI, AUS, EURO versions)
• Die-cast handle with long-lasting painted finish
• 3-point stainless steel latch with anti-friction mechanism
• Mortise equipped with 20 mm throw high-strength deadbolt
• Panic release function for emergency exit
• ADA compliant (for guests with physical disabilities)
• Future-proof reprogrammable FLASH RAM memory
• Powered by four AA batteries (up to 1 year lifespan)
• Stores up to 414 event audit trails
• Compatible with BIS Hotel software platform
• High-security mechanical override cylinder available

RFID Specifications

• Frequency: 13.56 MHz
• Standard: ISO 14443 A (MIFARE Classic)
• 11 free sectors for future all-in-one card applications

Technical Data

Lockcase Dimensions

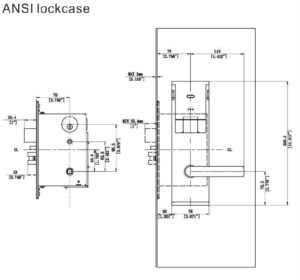

ANSI Lock Case

• Variant: ANSI DA
• Width: 28 mm (1.10″) / 31.5 mm (1.24″)
• Backset: 70 mm (2.76″)

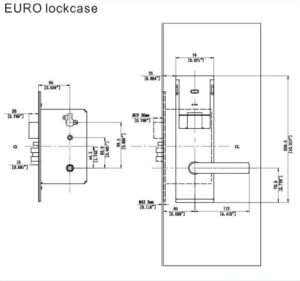

EURO Lock Case

• Variants: EURO DA (AUS and JPN versions available)
• Width: 22 mm (0.87″)
• Backset: 65 mm (2.56″)
