Features
- Integrated algorithm for fire analysis and quick black smoke recognition
- Drift sensitivity for wide environmental adaptability
- Removable sensing chamber for easy maintenance
- 360° visible fire LED
- Remote terminal connection for remote indicator
- Magnetic test feature
- 2-level sensitivity (EN 54-7 compliant at level 1)
Description
DC-9102E is a new-generation conventional photoelectric smoke detector with a built-in microprocessor.
It ensures stable and reliable performance through an advanced fire detection algorithm.
When smoke is detected, the detector sends a signal to the control panel via current change and keeps the LED on until reset.
The detector uses light scattering technology and includes drift compensation to maintain consistent sensitivity despite dust, humidity, and temperature changes.

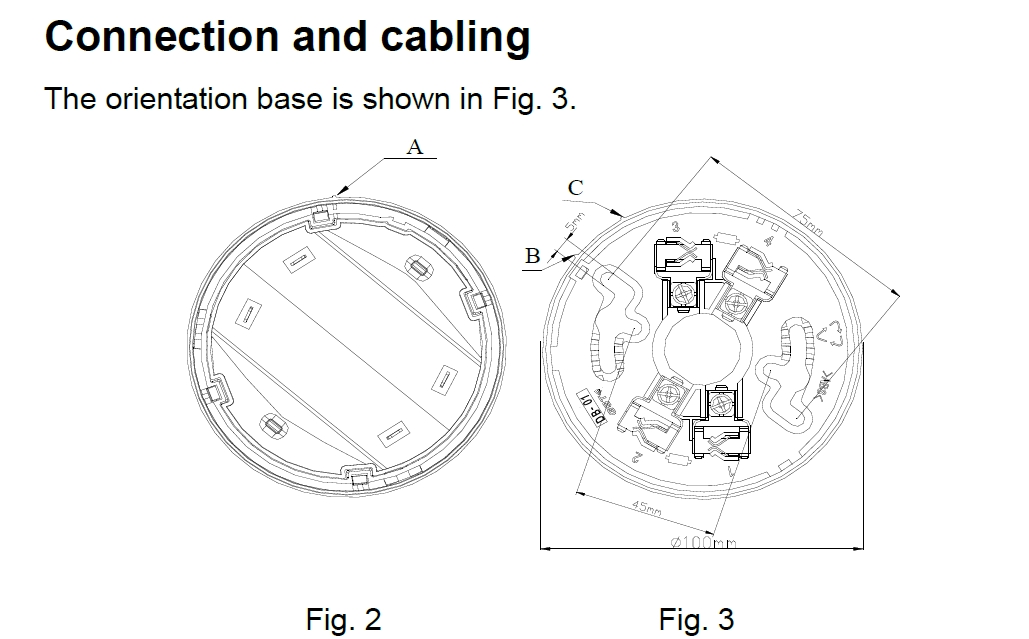

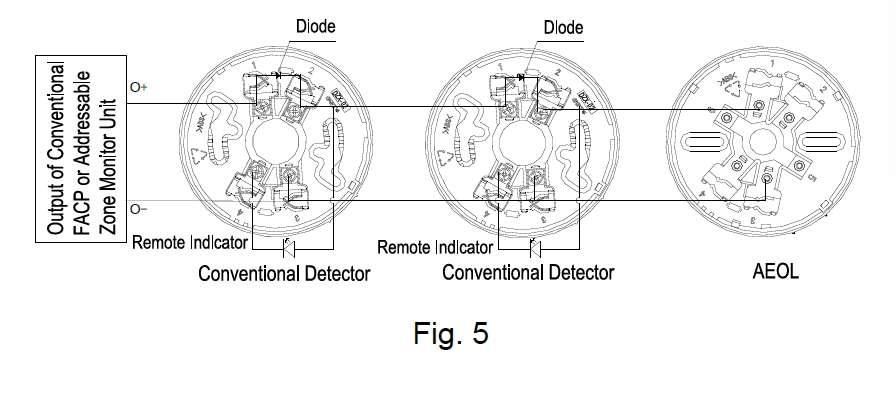

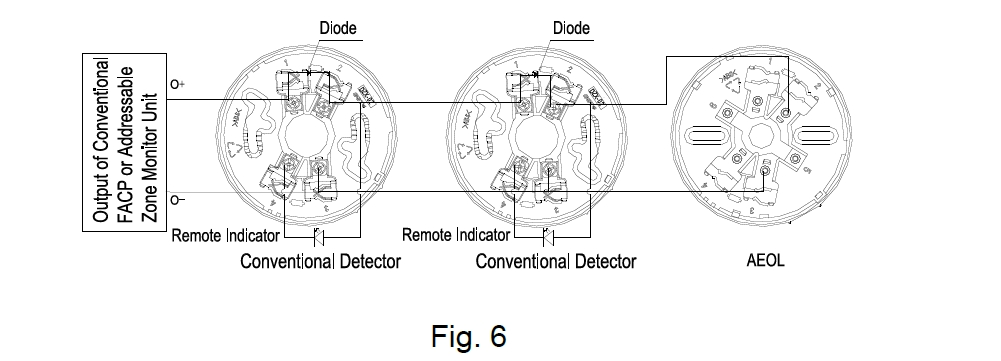

Connection and Cabling
- Terminal 1: Positive input from power supply or zone monitor
- Terminal 2: Output to next detector and remote indicator
- Terminal 3: Negative input/output
- Terminal 4: Remote indicator negative

Recommended Wiring: Use 1.0mm² or larger fire-resistant cable in conduit.

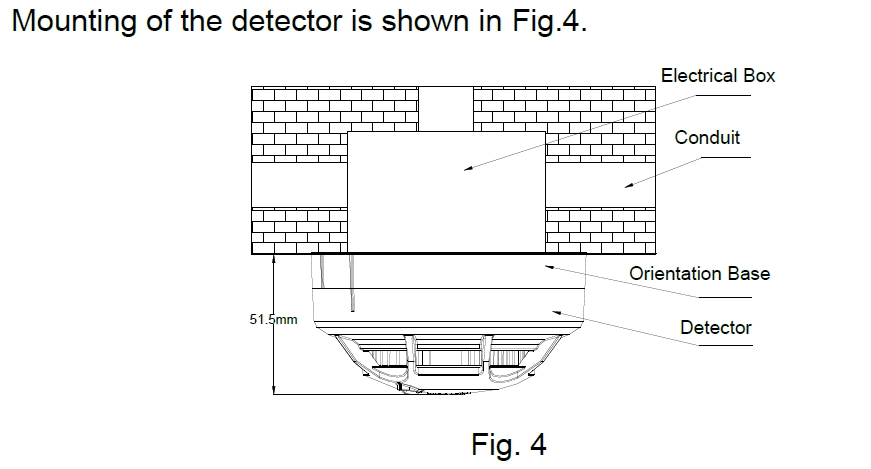

Installation
- Fix the base with screws
- Align detector with base
- Rotate clockwise to lock

Application
Suitable for hotels, offices, schools, banks, warehouses, libraries, computer rooms, and similar environments.
- Use DB-01D base when DP-9907 End of Line Unit is installed

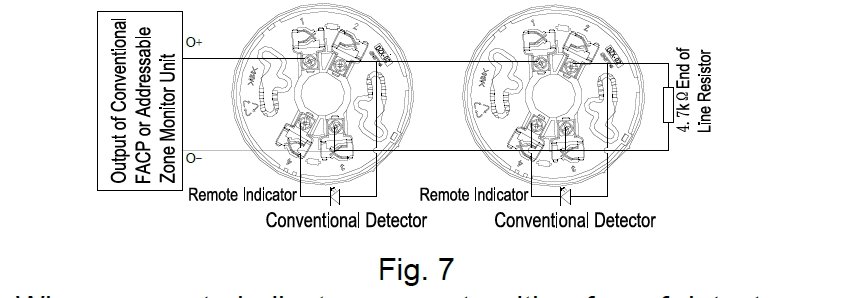

- Use DB-01 base when 4.7KΩ resistor is used
- Supports up to 15 devices per loop

Parameter Setup
| Parameter | Sensitivity | LED Status |
|---|---|---|
| 1 | Level 1 | ON |
| 2 | Level 2 | ON |
| 129 | Level 1 | OFF |
| 130 | Level 2 | OFF |
Testing

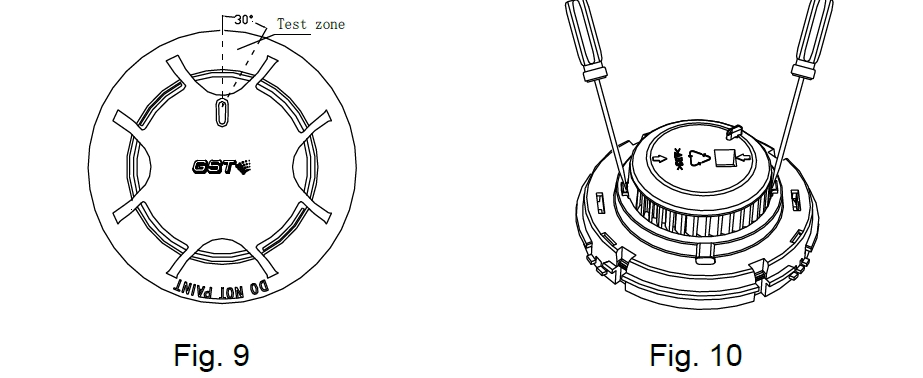

- Magnetic Test: Use a magnet near the detector
- Smoke Test: Apply smoke to trigger alarm
Reset by cutting power for at least 10 seconds.

Maintenance
- Install just before commissioning
- Keep dust cover on until use
- Clean at least once a year

- Open detector cover
- Remove sensing chamber
- Clean with alcohol or water
- Reinstall components

Specification
| Operating Voltage | 24VDC (16–28VDC) |
| Standby Current | ≤60μA |
| Alarm Current | ≤55mA |
| Temperature | -10°C to +50°C |
| Humidity | ≤95% |
| Material | ABS |
| IP Rating | IP2X |
| Size | 100mm x 44.5mm |
| Weight | 110g |
Accessories
| Model | Name |
|---|---|
| P-9910B | Handheld Programmer |
| DB-01 | Base |
| DB-01D | Base |
| DP-9907 | End of Line Unit |
| T-MT | Commission Tool |
